Redundant Power Supply Module GE Fanuc IC693ALG392 Analog Curr/Voltage Output Module
Each channel is capable of converting 15 to 16 bits (depending on the range
selected) of binary data to an analog output. All eight channels are updated every 8
milliseconds.
In current modes, the module reports an Open Wire fault to the CPU for each channel. The module can go to a known last state when system power is interrupted. As long as external power is applied to the module, each outputwill maintain its last value or reset to zero, as configured.
This module can be installed in any I/O slot of an RX3i system.Isolated +24 VDC Power
The module must receive its 24 VDC power from an external source, which must be
connected directly to the module’s terminal block.
PACSystems
RX3i and Series 90-30
Series 90-30 Analog Output Module, Current/Voltage, 8 Channel, IC693ALG392
RX3i Analog Output Module, Current/Voltage, 8 Channel, IC694ALG392
Specifications
Number of Output Channels 1 to 8 selectable, single–ended
Output Current Range 4 to 20 mA and 0 to 20 mA
Output Voltage Range 0 to 10 V and –10 V to +10 V
Calibration Factory calibrated to .625 µA for 0 to 20 mA; 0.5 µA for 4 to 20 mA; and .3125 mV for voltage (per count)
User Supply Voltage (nominal) +24 VDC, from user supplied voltage source
External Supply Voltage Range 20 VDC to 30 VDC
Power Supply Rejection Ratio (PSRR)
CurrentVoltage 5 µA/V (typical), 10 µA/V (maximum)
25 mV/V (typical), 50 mV/V (maximum)
External Power Supply Voltage Ripple 10% (maximum)
Internal Supply Voltage +5 VDC from PLC backplane
Update Rate 8 milliseconds (approximate, all eight channels)
Determined by I/O scan time, application dependent.
Resolution: 4 to 20mA: 0.5 µA (1 LSB = 0.5 µA)
0 to 20mA: 0.625 µA (1 LSB = 0.625 µA)
0 to 10V: 0.3125 mV (1 LSB = 0.3125 mV)
-10 to +10V: 0.3125 mV (1 LSB = 0.3125 mV)
Absolute Accuracy: *Current Mode +/-0.1% of full scale @ 25°C (77°F), typical
+/-0.25% of full scale @ 25°C (77°F), maximum
+/-0.5% of full scale over operating temperature range(maximum)
Voltage Mode +/-0.25% of full scale @ 25°C (77°F), typical
+/-0.5% of full scale @ 25°C (77°F), maximum
+/-1.0% of full scale over operating temperature range(maximum)
Maximum Compliance Voltage VUSER –3 V (minimum) to VUSER (maximum)
User Load (current mode) 0 to 850 Ω (minimum at VUSER = 20 V, maximum 1350 Ω at
VUSER = 30 V) (Load less than 800 Ω is temperature
dependent.)
Output Load Capacitance (current mode) 2000 pF (maximum)
Output Load Inductance (current mode) 1 H
Output Loading (voltage mode)
Output load Capacitance 5 mA (2 K Ohms minimum resistance) (1 µF maximum capacitance)
Isolation, Field to Backplane (optical) and to frame ground
250 VAC continuous; 1500 VAC for 1 minute Power Consumption 110 mA from +5 VDC PLC backplane supply
315 mA from +24 VDC user supply
The 8–Channel Analog Current/Voltage Output module; IC69*ALG392, provides up to eight single-ended output channels with current loop outputs and/or voltage outputs. Each output channel can be set up using the configuration software for any of these ranges:
0 to +10 volts (unipolar)
-10 to +10 volts (bipolar)
0 to 20 milliamps
4 to 20 milliamps

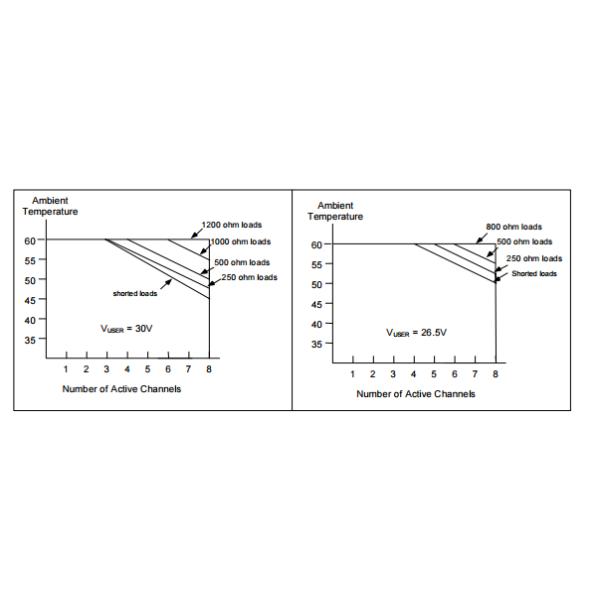

Current Outputs Only
Mixed Current and Voltage Outputs
In the example shown below, voltage channels have 2 K Ohm loads and current channels have shorted loads. Todetermine the maximum operating temperature for mixed current and voltage outputs, select the line in the chart belowthat corresponds to the number of voltage channels being used. For example, a module uses 2 voltage channels and 3current channels. The total channels are 5, and the maximum operating temperature is approximately 52.5°C:
Analog Current/Voltage Output - 8 Channel IC693ALG392 The 8-Channel Analog Current/Voltage Output module provides up to eight single-ended output channels with current loop outputs or voltage outputs. Each analog output channel is capable of providing two current output ranges or two voltage output ranges. Each channel can be individually configured for the output range required for your application.
The module has no jumpers or switches for configuration. All ranges can be configured using either Logicmaster 90-30/20/Micro or CIMPLICITY Control Programming Software configurator function, or the Series 90-30 Hand-Held Programmer. The default range is 0 to +10 volts. Configurable current and voltage output ranges are: 0 to +10 volts (unipolar) 10 to +10 volts (bipolar) 0 to 20 milliamps 4 to 20 milliamps Each channel is capable of converting 15 to 16 bits (depending on the range selected) of binary (digital) data to an analog output for use as required by your application. All eight channels are updated every 12 milliseconds. User data in the %AQ registers is in a 16-bit 2 s complement format. In current modes, an open-wire fault is reported to the CPU for each channel. The module can go to a known last state when system power is interrupted. As long as user power is applied to the module, each output will maintain its last value, or reset to zero, as determined by how you have configured the module. Important Product Information Please note the following important product information.
This version of the 8-Channel Analog Current/Voltage Output module requires the following product versions for compatibility: CPU: Firmware Versions 3.3 to 4.6: If your CPU has firmware version 3.3 to 4.6, you must select 16 %I bits at configuration. If this selection is not made, a loss of module fault will occur. CPU: Firmware Version 5.0 or later: If your CPU has firmware version 5.0, or later, then the %I configuration will accept 8 or 16 %I bits. Logicmaster 90-30/20/Micro Software: Version 5.00, or later, is required to configure the module using the Logicmaster 90-30/20/Micro software configuration function. Control Software: Version 2.00, or later, is required to configure the module using the Control software configuration function. 11 11-12 Series 90-30 PLC I/O Module Specifications July 2000 GFK-0898F IC693ALG392 Current/Voltage Ranges and Output Modes Current Operation In the 4 to 20 mA range user data is scaled so that 4 mA corresponds to a count of 0 and 20 mA corresponds to a count of 32000. In the 0 to 20 mA range, user data is scaled so that 0 mA corresponds to a count of 0 and 20 mA corresponds to 32000.
